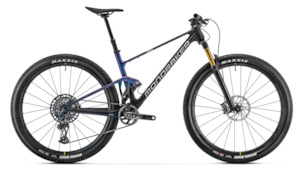

Mondraker F-Podium Carbon RR

EXTREMELY LIGHT, AGILE AND STIFF Our cross country bike are all about being extremely light, agile and stiff. With over 20 years of experience in building incredible bikes with the latest features, the Mondraker XC Race is ideal for eking out your last iota of performance. Thanks to the PMX Racing Team, it’s stood atop numerous international podiums, even winning the first 3 rounds of the 2022 World Cup with Bec McConnell aboard; A historic feat for the Australian aboard the top of the range F-Podium DC RR. Our proprietary technologies such as FORWARD GEOMETRY, STEALTH AIR FULL CARBON and ZERO SUSPENSION SYSTEM are on everyone's lips and make these models benchmarks on the international XC circuit. The F-PODIUM will help you climb to the top step of the podium thanks to its absolutely unreal performance on the most demanding of circuits. If hardtails are your thing, the PODIUM will be your choice of weapon. The exhaustive work we carried out on the manufacture of the frame made it the lightest mass-produced frame on the market at the time; and for the time being it still is! Considering our whole catalogue, the PODIUM range is one of the ones we’re proudest of, and that’s saying something! Depending on the circuit it’s the choice of both the PMG Racing Team and of Bec McConnell. You can’t say it any clearer than that!
THE EVOLUTION OF THE CROSS COUNTRY BENCHMARK True to our DNA. Our ZERO Suspension System totally reworked. Made for hardcore tracks. Fun, speed, design. No sacrifices. No compromises. We’re ahead of the game. Join our evolution. Introducing the new F-PODIUM.
CROSS COUNTRY

The Ultimate XC Weapon. Designed by our best engineers, built using our most refined carbon, and ridden by some of the fastest cross-country racers in the world. The F-Podium is the lightest, stiffest, and fastest full-suspension XC bike we’ve ever produced.

TECHNICAL SPECS

FRAME

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

REAR SHOCK

Fox Float SL Factory Kashima SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

Medium compression, medium rebound, air volume spacer 0.4

FORK

Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload

FORK REMOTE

Fox 3 position dual pull push to lock

HEADSET

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

STEM

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: /-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

HANDLEBAR

Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

GRIPS

Onoff Desert, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

SADDLE

Fizik Vento Argo X5

FRONT BRAKE

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

REAR BRAKE

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

BRAKE LEVER

Sram Level Bronze, tools-free reach adjust, lever pivot bushings

RIMS

Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

SPOKES

Mavic 24 straight-pull double butted spokes

FRONT HUB

Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

REAR HUB

Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub

FRONT TYRE

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

REAR TYRE

Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead

CRANKSET

Sram X1 Carbon Eagle, B
