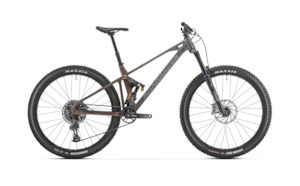

Mondraker Foxy R

ADRENALINE RUNS THROUGH YOUR VEINS. If you’re a rider who enjoys going up, but what you really love is the ride back down and that feeling of flow as you rip along the sweetest trails in your area then you’re one of us, and one of our enduro bikes was made for you. We’d bet that you love pushing your limits as far as you can, and when you get to the bottom you can’t help but tell your mates about that berm you railed or that jump that you’d been wanting to send forever and finally launched. then without a doubt you’ve got Mondraker DNA built-in. And we love that. That's why our enduro bikes have FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and some of them even have MIND; technology that lets you set up your suspension like a pro mechanic but without having to be one. And best of all, whichever model you choose, you’ll feel like the luckiest rider on the planet.
THE ICON The evolution of mountain bike disciplines is in constant flux and Enduro is by no means an exception. At Mondraker we’ve taken our most iconic model and evolved it to be more ‘Enduro’ than ever before.
ENDURO

Fast up, faster down, pinpoint precise, and instant fun. Meet the Foxy. Our 160/150mm enduro offering is built to ride it all, and suitably quicker than your comfort level. It’s probably the fastest mid-travel enduro bike you've ever ridden.

TECHNICAL SPECS

FRAME

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

REAR SHOCK

Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

SHOCK SETTINGS

C20 compression, R35 rebound

FORK

Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

HEADSET

Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

STEM

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

RIMS

e thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

SPOKES

e thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

FRONT HUB

e thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

FRONT TYRE

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO protection, 120TPI, folding bead

REAR TYRE

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

CRANKSET

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm

CHAIN

Sram SX Eagle, 12s, Powerlock

REAR DERAILLEUR

Sram NX Eagle, Type 3 roller bearing clutch
