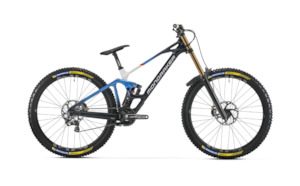

Mondraker Summum Carbon RR

DH IS OUR PASSION. DH AND RACING ARE IN OUR DNA Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the MS Mondraker Team, which includes world-class riders such as Eleonora Farina from Italy, who stood on several World Cup podiums (Lourdes, Fort Williams, Leogang, Lenzerheide, Mont-Sainte-Anne..) in the 2022 season. For 2023 our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.
DOWNHILL

The fastest discipline needs the fastest bike. Beautifully designed and refined for racing on the most extreme downhill tracks, under some of the world's best riders.

The Summum is our all-out, flat-out, downhill offering, built to spend every second at the absolute limit, on the toughest terrain you can ride.

TECHNICAL SPECS

FRAME

Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. Geometry kit included. MIND System V2

REAR SHOCK

Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

SHOCK SETTINGS

ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs

FORK

Fox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8" steerer tube, 20x110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

HEADSET

Onoff Mercurium 1.5 ZS for 1-1/8" steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm

STEM

Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

HANDLEBAR

Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Renthal, double lock-on, kevlar compound, 130mm

SEATPOST

SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment

SADDLE

SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides

FRONT BRAKE

Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler

REAR BRAKE

Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler

BRAKE LEVER

Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust

RIMS

e thirteen LG1 Race Carbon, IW30 29" Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes

SPOKES

e thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

FRONT HUB

e thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

FRONT TYRE

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

REAR TYRE

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

CRANKSET

Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm

RINGS

36T, aluminum, BCD 104

BOTTOM BRACKET

Shimano 83mm

CHAIN

Shimano HG95, 10s

FRONT DERRAILLEUR

E.13 Vario Compact Upper Slider, Alloy backplate, DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

REAR DERAILLEUR

Shimano Saint RD-M820-SS, 10s, Shadow , short cage

SHIFT LEVERS

Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
