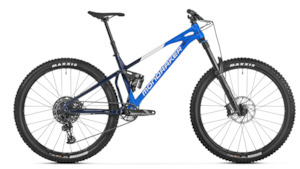

Mondraker Superfoxy

IF YOU LIVE FOR THE ADRENALINE RUSHING THROUGH YOUR VEINS ON THE DOWNS, BUT NEED A MORE VERSATILE BIKE THAN A PURE DH FOR THE UPS If you live for the adrenaline rushing through your veins on the downs, but need a more versatile bike than a pure DH for the ups, our Super Enduros were tailor made for you. A Mondraker Super Enduro will make you feel alive, whether at the bike park, on the wildest trials that you’ve ever dared to head down or along the sweetest technical trails you’ve ever had the joy to sample. Up like a FOXY and down like a SUMMUM, that's what we’ve brewed into our super enduros.

GRAVITY ENDURO / BIKEPARK

Stoic in the face of everything gnar. Ultra refined, and ruthlessly fast. Meet the SuperFoxy. Our ultimate in long-travel enduro capability, at home on the toughest EDR stages in the world or smashing endless bikepark laps. Enjoy 170/160mm of limitless enduro potential.

TECHNICAL SPECS

FRAME

Aluminum frame, 160 mm travel

REAR SHOCK

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

SHOCK SETTINGS

Medium compression, Medium rebound, 0.2 air volume spacer

FORK

Fox 38 29 Float RHYTHM 170mm, GRIP damper, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

HEADSET

Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

STEM

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

HANDLEBAR

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

GRIPS

Onoff Twin, 1lock-on, 135mm

SEATPOST

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

SADDLE

SDG BEL-AIR 3.0, LPU foam, steel rails

FRONT BRAKE

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

REAR BRAKE

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

BRAKE LEVER

Sram DB8, tool reach adjust, lever pivot bushings

RIMS

e thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

SPOKES

e thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

FRONT HUB

e thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

REAR HUB

e thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

FRONT TYRE

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

REAR TYRE

Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

CRANKSET

Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL

RINGS

32T, CNC-machined alloy, X-SYNC 2

BOTTOM BRACKET

Sram DUB BSA, sealed bearings, 73mm, superboost

CHAIN

Sram SX Eagle, 12s, Powerlock

REAR DERAILLEUR

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

SHIFT LEVERS

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

CASSETTE

Sram PG-1210, 11-50T, 12s

DERAILLEUR HANGER

Mondraker M068

WEIGHT

17.4 kg

Sizes

S, M, L, XL
