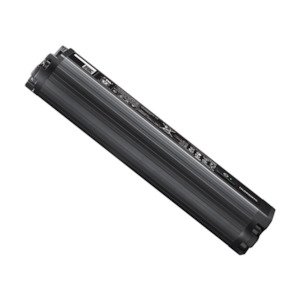

Shimano STEPS Integrated Battery 504Wh

PLEASE NOTE:

Batteries are classed as dangerous good which means shipping times can be longer than usual. All batteries will be shipped in a separate, battery specific parcel.

Experience better handling, range, and charge times thanks to the high-quality cells in this compact down tube battery

Our second-generation 504Wh integrated down tube battery features a compact design and a low center of gravity for a more natural riding experience. High-quality cells help it charge quickly and retain max capacity longer

FEATURES Capacity: 504 Wh (36 V, 14 Ah) Fully charge in 5 hours with EC-8004 charger Temperature: 0°C - 40°C (charging) -10°C - 50°C (operating) Long-lasting battery retains more than 60% of its initial maximum capacity after 1,000 full charges Compatible with SHIMANO STEPS second-generation down tube battery mount Durable construction with IPX5 water resistance stands up to the elements and low-pressure washes Same mount as BT-EN805-L and BT-EN806

Supports sleek frame design
PRODUCT SPECIFICATIONS MODEL NO BT-EN805 SERIES EP8 EP801 Series Color Standard Average weight 2.9 Remarks By EC-E8004 ( In case of 100 V AC) with SM-BTE80 or EW-CP100 Chemistry Li-Ion Position Integrated Rated voltage (V) 36 Rated capacity (Ah) 14 Rated capacity (Wh) 504 Cyclelife span for charge (times) 1,000 (more than 60%) Time to charge (hour)SOC = 100% 4 ( 4.5) Time to charge (hour)SOC = 80% 2.5 ( 3.2) Charge level display ✔ Error signal ✔ Charging port - System on/off switch ✔ Compatible battery mount BM-EN800-A BM-EN800-B BM-EN801-A BM-EN801-B Compatible charger EC-E6002, EC-E8004 Compatible adaptor for charge SM-BTE80
