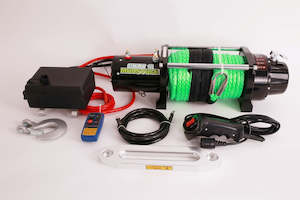

Mudstuck 12000lbs Winch 24V with Dyneema
More power. Same trusted toughness.
The Mudstuck 12000lb 24V winch is built for serious users who need consistent pulling performance and reliability under load. Developed over two years and tested for 12 months in New Zealand's harshest conditions by Green Motorsports, this winch has earned its reputation as a workhorse in the field.
If your setup runs a 24V system and you're regularly tackling tough recoveries, this is the winch to get. It’s made for those who don’t mess around.
Compare Our Winches
Not sure which winch is right for you? Check out our winch comparison page here.
Ideal for:
24V commercial and off-road vehicles
Heavy-duty 4x4 trucks and utes
Trailers, recovery vehicles, and serious work use
Demanding recovery environments Key Features:
IP67 rated – resistant to dust and water
24V power for more efficient, reliable pulls
5.2hp permanent magnet motor
Turn clutch for fast engagement
Field-tested in for performance and durability
Dyneema rope included for strength and safety Technical Specs:
Rated pull: 12,000lbs / 5,443kg (single line)
Motor: 24V permanent magnet, 5.2hp
Gearbox: NGWN planetary gear, 216:1 reduction
Drum size: 64mm x 224mm
Battery leads: 1.83m
Rope: 27m of 9.5mm Dyneema (rated to 7,647kg)
Line speed: 10.8m/min
Amp draw under load: 360A
Winch weight: 28kg
Overall dimensions: 535mm x 162mm x 170mm In the Box:
Mudstuck 12000lb 24V Winch
Fairlead
Wired Remote
Wireless Remote
Dyneema Rope (27m)
