Mudstuck 4500lbs Winch 12V with Dyneema
Small size. Big impact.
The Mudstuck 4500lb winch is perfect for boat trailers, ATVs, quad bikes, and lighter recovery tasks. Built tough and tested right here in New Zealand by Green Motorsports, this winch was designed to handle serious use — even in compact applications.
Whether you're hauling your quad out of the bush or winching a vehicle onto a trailer, this is a versatile, lightweight solution that still packs a punch.
Compare Our Winches
Not sure which winch is right for you? Check out our winch comparison page here.
Ideal for:
ATVs, UTVs, and quad bikes
Boat trailers and smaller car trailers
Light 4WDs and side-by-sides
General utility and recreational use Key Features:
IP67 rated – sealed against dust and water
Compact but powerful 12V motor
Turn clutch for quick operation
NZ-tested and proven in real conditions
Comes with Dyneema rope and both remote types Technical Specs:
Rated pull: 4,500lbs / 2,041kg (single line)
Motor: 12V permanent magnet, 2.2hp
Gearbox: NGWN planetary gear, 166:1 reduction
Drum size: 51mm x 75mm
Battery leads: 1.5m
Rope: 13m of 5.5mm Dyneema (rated to 2,447kg)
Line speed: 4.5m/min
Amp draw under load: 238A
Winch weight: 11.5kg
Mounting measurements: 165mm x 82mm

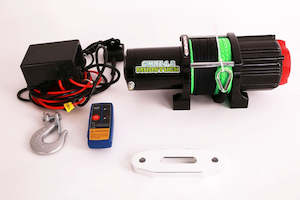

Overall dimensions: 327mm x 128mm x 122mm In the Box:
Mudstuck 4500lb Winch
Fairlead
Wired Remote
Wireless Remote
Dyneema Rope (13m)
- ATV Manual
- Offroad Winch Manual
