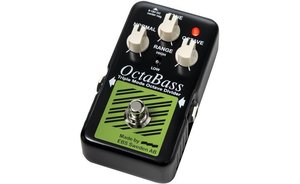

EBS OctaBass pedal Blue Label Octave Pedal

The EBS OctaBass was the first effect unit ever made by EBS. It is famous for fast and accurate tracking and a fat, natural sound. When you play your instrument, it "tracks" the note you play and produce a sound one octave below to mix in with the note you play. The 'Blue Label' model has a couple of new features that enhance the tracking range and improves the control of the sound.

Improve the tracking where it matters the most

A new Range-switch makes it possible to move the optimized focus area of the tracking to either higher up or lower down the fretboard. All to match your playing style and needs. This feature makes the tracking speed and range outstanding for an analog octave pedal. Note: Don't confuse this switch with the Range-switch on previous OctaBass pedals where it changed the character of the tone.

Enhanced tone control

By adding a seamless tone control you can go from a present, focused octave sound that cuts through the mix all the way to a sub-bass backdrop of lows that discreetly supports the note you play. The tone control enhances the palette of sounds and also makes it easier to achieve a synthesized bass sound.

Power the Blue Label OctaBass with 9-18V DC power. The footprint is reduced by 12% compared to the previous Studio and Black Label editions.

Specifications

Nominal Input Level: -10 dBv

Input Impedance: 1.8 Mohms

Output Impedance: 100 ohms

Dry Bandwidth 0/-2 dB: 20 - 20k Hz

Dry Level min/max: -oo / 0 dB

Octaver Level Gain min/max: -oo / 12 dB min

Octaver Tone Filter:
Type Low Pass
Slope >18 dB/octave
Range 60 - 350 Hz

Triggering Threshold: -70 dBv @200 Hz

Dimensions: W x H x D 2.6" x 4.5" x 1.9"
(67 x 115 x 48 mm)

Weight: 315g (0.7 lb.)

Type: Analog Effect, Relay type Switching

Power Requirements: 9, 12 or 18 V DC, 40 mA max. Pedal shuts off below 6.0 V
