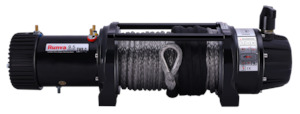

Runva EWB9500-Q PREMIUM EVO 12V with Synthetic Rope
The Runva EWB9500-Q Premium EVO is our latest creation. If you want all the industry leading Premium features PLUS fast line speed - this is the one for you. Others will be left with envy as you winch out of that mud hole at nearly twice the speed. This model now also features our very latest clutch system. Now you can pull the rope out by hand without any resistance making recoveries quicker and hassle free!
Ideal for a small to medium sized vehicle that demands a fast and reliable winch (or other application). With 9,500lb of line pull, we achieved the speed thanks to the large 7.2HP motor and incredibly low 80:1 gear ratio. This winch has all of our Premium features built in as standard.
Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out. The EWB9500-Q is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.
Please check the technical drawing below for sizing and compatibility with your setup. We recommend the use of a 1000CCA battery and upgraded power leads to 70mm2. By doing this you will achieve even faster line speeds than what is shown in our performance table. This winch has been tested in competition under constant strain.
RATED LINE PULL 9,500LB (4,309KG) MOTOR (12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP GEAR TRAIN FULL STEEL 3 STAGE PLANETARY GEAR RATIO 80:1 CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX CABLE TYPE SYNTHETIC ROPE CABLE SIZE 10MM X 25M DRUM SIZE 63MM X 216MM MOUNTING BOLT PATTERN 254MM X 114.3MM OVERALL DIMENSIONS 612MM X 160MM X 200MM REMOTE CONTROL HEAVY DUTY HANDHELD WIRELESS BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS FINISH BLACK POWDER COAT WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
Shipping Weight 37.50kg Shipping Width 0.630m Shipping Height 0.330m Shipping Length 0.330m
What’s in the box:
Complete Winch
Control Box
Control Box Mounting Brackets
Battery Leads
Handheld Wireless Remotes
Hawse Fairlead
Isolator Switch
Recovery Hook
Minimum 1000CCA battery required to power this winch.
