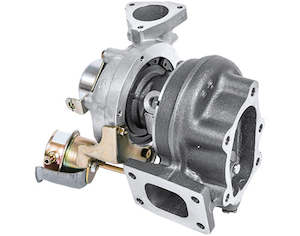

Garrett GT2554R

Horsepower: 170 - 270

Displacement: 1.4L - 2.2L

Features:

ORIGINAL GT SERIES AERODYNAMICS

INTERNALLY WASTEGATED TURBINE HOUSING

SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)

SMALLEST BALL BEARING CONFIGURATION AVAILABLE

WATER COOLED CHRA

Compressor Specs
-0.80 A/R compressor housing 2.36" inlet 1.5" 3-bolt outlet
-60-trim compressor wheel 1.65/2.13 42.1mm inducer
Turbine Specs
-0.64 A/R turbine housing internally wastegated T25 inlet
-53.0mm 62-trim GT25 turbine wheel

CHRA Specs
-Dual Ball Bearing
-Oil and water-cooled bearing housing
-M14x1.5 water ports

Part Numbers
836023-5001S - Complete Turbo 0.64 A/R T25 turbine inlet
