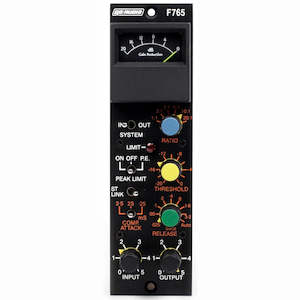

Q2 Audio F765 500 Series “Compex” Compressor/Limiter

The Q2 Audio F765 is the compression and limiting sections of the famous “Compex Limiter"™ built into a single 500 Series slot. The audio path contains the same blue Phillips type capacitors and BC series transistors as the original Compex.

Formatted after the vertical “N-Unit" with slight layout changes for enhanced usability, the F765 lives up to the reputation it’s big brother, the F760X-RS, has made over decades of being a “secret weapon" on countless records. FEATURES

- Single channel level control offering simultaneous compression gain reduction with peak limiting
- Precision calibrated compressor/limiter threshold control which allows the user to “dial up" the amount of compression required before peak limiting occurs
- Switched Compression values from 1:1 (amplifier), 2:1, 3:1, 5:1, 10:1 & 20:1 (limiter)
- Auto dual platform release function – allows fast transient recovery on a “build-up" slow release SPECIFICATIONS

- Input: 10K ohms Unbalanced
- Output: Transformer Balanced (Cinemag CMOB-3L) Max output: 20dBu, 18.5dBm
- Metering: Sifam Fast Responding analog meter
- Stereo Linking: Must order as stereo pair
- Power requirements: /-16V DC @ 70mA per rail (brief 400mA turn-on surge).
- System Gain: 34dB with input/output attenuators fully open. Unity gain in Bypass mode
- Thresholds:

- Peak Limiter: 14dBu maximum with unattenuated output. Referred to unattenuated input level 20dBu
- Compressor: Calibrated with reference to Peak Limiter thresholds and marked 0 – 20dB in 2dB steps. (Reference to unattenuated input level this is -20dBu to -40dBu)
- Release:

- Peak Limiter: 250mS,
- Compressor: 25mS, 50mS, 100mS, 200mS, 400mS, 800mS, 1.6 secs, 3.2 secs Auto release function
- Attack:

- Peak Limiter:< 250uS for 100% control of overshoot – without any over limiting. (measured at 1KHz for 10dB gain reduction)
- Compressor: 250uS, 2.5mS, 25mS
- Distortion: Measured at 1KHz for 10dB compression & 3.2 secs release time.

- Compressor: at 10dBu threshold
