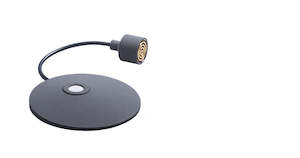

Schoeps Mikrofone BLM 03 C BOUNDARY LAYER CAPSULE

The BLM 03 C is connected through its fixed cable to a Colette CMC microphone amplifier, thus resulting in a complete microphone. All known properties of the BLM 03 C are identical to those of the BLM 3.

It is recommended to use the BLM 03 C when the BLM 3 is too large (for example when recording for TV or film) or too heavy (for example when gluing to the roof inside a vehicle or under the lid of a grand piano).

Since the BLM 03 C includes active electronics, it is not compatible with other active accessories such as RC, KC. FEATURES

Can be placed unobtrusively

Preferred uses: on speaker tables, altars, in a grand piano or as a room microphone

Only 80 mm in diameter

Cable length: 5 m / 16.40 ft PRACTICE

The small dimensions of the BLM 03 C in combination with the matte gray Nextel surface enable a particularly discreet placement. Even completely invisible placement is possible if the microphone is hidden under a tablecloth made of lightweight fabric.

Due to its small size, however, it should be noted that the BLM 03 C should definitely rest on a sufficiently large, sound-reflecting surface. When recording a panel discussion, a table may be sufficient. For most music recordings a larger area is recommended.

The BLM 03 C can also be mounted in a grand piano with the lid open or closed. TECHNICAL SPECIFICATIONS

Pickup pattern - Half-space

Frequency range - 20 Hz - 26 kHz with CMC 6 / CMR

- 20 Hz - 43 kHz with CMC 6xt

Sensitivity - -36 dB (V/Pa), 16 mV/Pa with CMC 6

Equivalent noise level (A-weighted) - 12 dB with CMC 6

Equivalent noise level (CCIR) - 23 dB with CMC 6

Signal-to-noise ratio (A-weighted) - 82 dB with CMC 6

Maximum sound pressure level (THD< 0.5 %) - 130 dB-SPL with CMC 6

Diameter - 80 mm

Height - 8,6 mm

Weight - 233 g

Surface finish - matte gray

CMC Preamp Sold Separately
