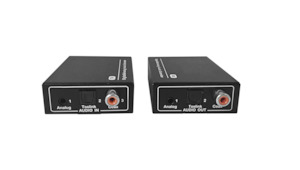

Digital & Analog Audio Extender
- AUDIO EXTENDER – Extend Coaxial or Toslink digital audio signals up to 1480ft (450 meters), Digital audio up to 1640ft (500 meters)
- AUDIO FORMATS – Coaxial & Toslink: Digital Audio up to 7.1-channel, supports Dolby Digital, DTS, PCM, Sampling rate: 48k/96k/192k (16bit/18bit/24bit); RCA (L R): Stereo
- AUDIO SPLITTER – Simultaneous audio to all outputs (Coaxial, Toslink, RCA Stereo) on the Receiver end with embedded DAC (digital-analog converter) & ADC (analog-digital conversion) Note: Only one input source can be used at a time on the Transmitter side
- POWER over CABLE (PoC) – Allows 1 power adapter connected to the TX to power the RX through CAT cable
Features
- Transmission Range: Analog audio up to 1480ft (450 meters), Digital audio up to 1640ft (500 meters)
- Accepts Analog, Digital Coax or Optical Toslink
- Auto indentify audio input: Analog>Digital Coax>Optical Toslink
- Supports PCM2.0, Digital 5.1 (DTS, Dolby Digital,. )
- Input 44.1-96khz, output 48khz, 16-24bit
- Support AC 100~240V 50/60hz power, DC 12V/1A, dual POC
Specifications
- Operating Temperature Range: 0 to 40℃( 32 to 104℉)
- Operating Humidity Range: 5 to 90%RH (No Condensation)
- Data transfer speed: 6.9Mbps
- Connectors Transmitter: 1xCat5e/6 out, 1xPower DC, 3xAudio in(for Analog, Optical and Coaxial)
- Connectors Receiver: 1xCat5e/6 in, 1xPower DC, 3xAudio out(for Analog, Optical and Coaxial)
- Audio format: PCM2.0, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital, 2/0, DTS-HD, DTS ES Discrete 6.1, DTS ES, Matrix 6.1, DTS Digital Surround 5.1, DTS 2, Channel
- Power consumption: 1.5watts(Maximum)
- Dimension (L×W×H): 58.5x54.7x21mm
- Net Weight: 182g(Pair)
Package Includes
- Main Unit. over Cat5e/6 Cable
- Operating Instructions
- Power adapter DC 12V 1A x1PCS Product Brochure
SX-AEX02 Datasheet.pdf
