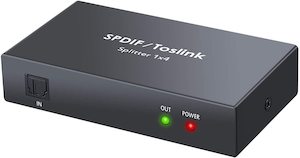

Toslink Digital Optical Audio 1x4 Splitter

This device Splits & Distributes a Single Digital Audio Input to up to 4 Simultaneous Optical Digital Outputs.

Features

- One way of optical fiber signal input splitter to Four sets of SPDIF/TosLink signal receiving device.

- Audio format support : LPCM2.0/DTS/Dolby-AC3

- Support signal retiming

- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m,No loss of quality.

- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine

- Installs in minutes, need DC5V/500mA power supply

Specifications

Support audio format LPCM2.0/DTS/Dolby-AC3

Peak wavelength 650nm

Max baud rate 16Mbps

Output cable distance ≤40m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current 100mA

Power adapter format Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA

Operating Temperature range 0 to 40℃)

Operating Humidity rang 5 to 90%RH (No Condensation)

Dimension (L x W x H) 89x50x24 (mm)

Weight 86g

Package Includes

- 1x 5V DC power adapter
- 1x User manual
