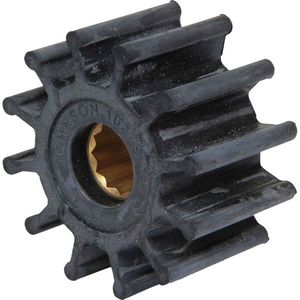

Johnson 09-1027B-1 Impeller Kit for F5 Pumps (MC 97)

The genuine Johnson MC97 flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller is designed to be installed to some of the F5 range of Johnson Pumps which suits the impeller dimensions listed below, including:

- F4B-9 pump models: 10-24086-1.

- F5B-3, F5B-302, F5B-3000, F5B-3020, F5B-30007 and F5B-30207 pump models: 10-22044-1, 10-22044-2, 10-24210-1, 10-24210-3, 10-24210-5 & 10-24210-7.

- F5B-5000 pump models: 10-24112-.

- F5B-8, F5B-802, F5B-8001, F5B-8007, F5B-8021 and F5B-8027 pump models: 10-24073-1, 10-24073-10, 10-24073-11, 10-24073-12, 10-24073-2, 10-24073-5, 10-24073-51, 10-24073-6, 10-24073-9, 10-24113-1, 10-24571-01, 10-24571-03, 10-24571-13, 10-24571-15, 10-24571-51, 10-24571-52, 10-24571-53, 10-24571-54, 10-35180-1 & 10-35180-2.

- F5B-9, F5B-902, F5B-903, F5B-905, F5B-9001, F5B-9002, F5B-9003, F5B-9004, F5B-9005, F5B-9006, F5B-9007 and F5B-9022 pump models: 10-11246-1, 10-13159-01, 10-13159-02, 10-13159-03, 10-13159-04, 10-13159-05, 10-13159-06, 10-13159-07, 10-13159-08, 10-13223-01, 10-13223-02, 10-13223-03, 10-13223-04, 10-13236-01, 10-13236-02, 10-13283-01, 10-13283-1, 10-13324-01, 10-13324-02, 10-13324-03, 10-13324-04, 10-13325-01, 10-13325-02, 10-13328-01, 10-13328-02, 10-13344-01, 10-13353-01, 10-13353-02, 10-13353-03, 10-13353-04, 10-13354-01, 10-13354-02, 10-13392-01, 10-13392-02, 10-22143-1, 10-22143-2, 10-22355-1, 10-22355-2, 10-24015-1, 10-24035-1, 10-24035-2, 10-24035-3, 10-24035-4, 10-24035-5, 10-24035-6, 10-24047-1, 10-24053-1, 10-24053-2, 10-24076-1, 10-24085-1, 10-24100-1, 10-24119-1, 10-24119-2, 10-24119-3, 10-24119-4, 10-24119-5, 10-24119-6, 10-24119-7, 10-24119-8, 10-24131-1, 10-24131-2, 10-24131-3, 10-24131-4, 10-24140-1, 10-24140-2, 10-24140-3, 10-24140-4, 10-24140-5, 10-24174-1, 10-24184-1, 10-24215-1, 10-24225-1, 10-24225-2, 10-24225-3, 10-24228-1, 10-24228-2, 10-24228-3, 10-24228-4, 10-24228-5, 10-24228-6, 10-24230-1, 10-24230-2, 10-24230-3, 10-24230-4, 10-24230-5, 10-24268-1, 10-24268-2, 10-24268-3, 10-24268-4, 10-24268-5, 10-24318-01, 10-24325-01, 10-24325-02, 10-24334-01, 10-24334-02, 10-24372-01, 10-24451-01, 10-24461-01, 10-24508-01, 10-24508-02, 10-24508-03, 10-24508-04, 10-32256-1, 10-35100-1, 10-35231-1, 10-35327-01, 10-35327-02 & 10-35327-03.

- Volvo Penta pump models: 3583089, 3807560, 3812693, 3812694, 3812695, 3812696, 3812697, 3812698, 3857794, 3858847 and 857451/P01.

- Bukh pump model: 610G0290.

MC97 has been developed to meet new environmental regulations for rubber manufacturing processes and will replace the regular Johnson neoprene impeller compound. The development of MC97 has also resulted in an extended service life of the impeller compared to impellers in neoprene.

The Johnson flexible pump impeller has twelve blades and is supplied complete with gaskets, O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

The Johnson 09-1027B-1 can be used to replace the Jabsco 1210-0001 Europe and USA flexible impeller, as well as Volvo Penta 825940 impellers. For applications containing diesel or light oils, use Johnson nitrile impeller 09-1027B-9.

It is highly recommended you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.

Impeller fits the following engines as standard:

- Beta Marine Beta 43 hp, Beta 50 hp, Beta 60 (58 hp) & XLD 418

- British Leyland 1:05, 1:08, 2:02 & 2:05

- Bukh 1G/2G/3G, 2G/3G 105M, DV36 ME/SME & DV48 ME/SME

- Fischer Panda Panda-PMS 15 KUB, Panda PMS 20 KUB, Panda PMS 25 KUB, Panda PMS 30 KUB, Panda PMS 40 MB & Panda PMS 50 MB

- Ford 2400, 2722, 2401E, 2701E, 2704E, 2704ET, 2704ETA, 2711E, 2713E, 2714E, FSD425, FSD425A Transit & FSD425B

- Isuzu 4BG1, 4JG2 & 6BG1 Gen-sets

- Lister Petter LPW4

- Mercedes OM636 & OM314

- Mermaid Marine FSE 425, Meermin, Merlin & Minuet

- Nanni 3.110 HE, 4.110 HE, 4.110 L, 4.150 HE, 4.180, 4.190 HE, MB180, MB220 & MB300

- Norfolk Marine 2722 & XLD

- Perkins 4.107MLL, 4.108 4 cyl, 4.108MLL, 4.236 4 cyl, 4.236, 4.236T, 4.236LL, 4.99M, 4.99M, M90/4HD76/6HD, M200, M240, M275 & T/H/HT 6.354M

- Sabre 80, 120 & 140

- Tempest Captain 1.5 & 1.8, Commander 2.5LR & 50HP (HX), Commodore 53 & Sea Prince 3000S

- Thornycroft 90E, 90/2, 108, 138, 152, 154, 160, 240, 251 & 331

- Vetus 36-22-11, 42-26-21, 42-26-26, 52-34-21, 52-34-26, M4.14, P4.17, P4.19, VH4.65 & VH4.80 DOUBLEBREA
