Johnson 09-1028BT-1 Impeller Kit for Johnson F7B Pumps (MC97)

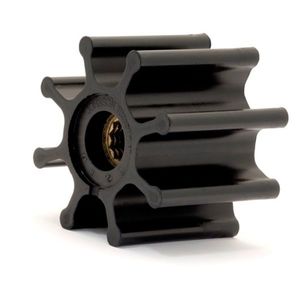

The genuine Johnson MC97 flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller has eight blades and is supplied complete with gaskets, O-ring, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.
The Johnson flexible pump impeller is designed to be installed to some of the F7 range of Johnson Pumps, including the following:
Pump Suitability for the Johnson 09-1028BT-1 Impeller:
- Johnson F7B-3 pumps (10-22045-1 & 10-22054-1)
- Johnson F7B-3000, F7B-3020 & F7B-3030 pumps (10-24209-1, 10-24209-3 & 10-24209-5)
- Johnson F7B-30007, F7B-30207 & F7B-30307 pumps (10-24209-7, 10-24209-9 & 10-24209-11)
- Johnson F7B-5 pumps (10-22342-)
- Johnson F7B-5000, F7B-5001, F7B-5001 MC & F7B-5007 pumps (10-24071-99, 10-24116-98, 10-24116-99, 10-24556-01, 10-24577-13, 10-24577-99 & 10-24578-03)
- Johnson F7B-50017 & F7B-50017 MC pumps (10-24071-98, 10-24556-02, 10-24577-19 and 10-24578-04)
- Johnson F7B-8 pumps (10-24070-1, 10-24070-9, 10-24070-10, 10-24572-01, 10-24572-13, 10-24572-53 & 10-24572-54)
- Johnson F7B-803 pumps (10-24070-3, 10-24572-05 & 10-24572-17)
- Johnson F7B-8001, F7B-8007 & F7B-8037 pumps (10-24070-5, 10-24070-7, 10-24070-51, 10-24114-1 & 10-24572-51)
- Johnson F7B-9 pumps (10-13064-1, 10-13064-2, 10-13142-01, 10-13142-02, 10-13374-01, 10-21876-1, 10-22144-1, 10-22335-3, 10-22354-1, 10-24014-7, 10-24020-1, 10-24020-2, 10-24061-1, 10-24061-3, 10-24103-1, 10-24126-2, 10-24127-1, 10-24139-1, 10-24139-3, 10-24139-5, 10-24139-7, 10-24179-1, 10-24235-1, 10-24235-3, 10-24244-1, 10-24253-2, 10-24253-3, 10-24277-1, 10-24277-3, 10-24277-5, 10-24280-2, 10-24338-01, 10-24338-02, 10-24349-01, 10-24365-01, 10-24365-02, 10-24386-01, 10-24390-01, 10-24394-01, 10-24394-03, 10-24398-01, 10-24398-02, 10-24428-01, 10-24431-01, 10-24445-01, 10-24524-01, 10-24524-02, 10-24524-03, 10-24524-04, 10-24524-05, 10-24535-01, 10-24580-01, 10-24599-01, 10-24621-01, 10-24630-01, 10-24630-02, 10-24637-01, 10-24666-01, 10-24666-02, 10-24667-01, 10-24748-01 & 10-24753-01)
- Johnson F7B-902 pumps (10-11236-3, 10-24061-2, 10-24061-4, 10-24127-3, 10-24253-1, 10-24277-2, 10-24277-4, 10-24394-02 & 10-24475-01)
- Johnson F7B-903 pumps (10-11236-2, 10-21876-2, 10-22139-1, 10-22147-1, 10-22335-2, 10-22335-4, 10-22354-2, 10-24017-1, 10-24017-2, 10-24017-3, 10-24017-4, 10-24028-1, 10-24048-1, 10-24057-1, 10-24103-2, 10-24126-1, 10-24126-3, 10-24127-2, 10-24139-2, 10-24139-4, 10-24179-2, 10-24218-1, 10-24235-2, 10-24244-2, 10-24280-1, 10-24305-01, 10-24329-11, 10-24475-02, 10-24542-01, 10-24567-01 & 10-24654-01)
- Johnson F7B-9000, F7B-9001, F7B-9002 & F7B-9030 pumps (10-24014-1, 10-24014-2, 10-24014-3, 10-24014-4, 10-24014-5, 10-24014-6 & 10-24183-1)
The Johnson 09-1028BT-1 can be used to replace the Johnson 09-1028B neoprene, Jabsco 17937-0001 and 920-0001 Europe and USA flexible impellers as well as the Sherwood 18200 impeller. For applications containing diesel or light oils, use Johnson nitrile impeller 09-1028B-9.
Engine Suitability for the Johnson 09-1028BT-1 Impeller:
- Bayliner 105, W04C-T120/3000, W04D & W06D-T1 250/3000 engines (10-24253-1, 10-24365-02 & 10-24253-2)
- Beta Marine BSD 333, BSD 678, Dover 2725, Dover 2726 T & Dover 2726 TIM engines (10-24139-4 & 10-24244-1)
- Bomac Marine 6 cyl engines (10-24139-5)
- Bukh 4K 105M & 6K 105M engines
- C-Power 2500, 2720, 6.675, 2722-series 4 cyl, 2725-series 6 cyl, 4.254, 4.444, 6.216, 6.363TC/TCIC, 6.380, 6.666, BSD 31, BSD 4 & BSD 6 cyl engines (10-24139-1, 10-24139-4, 10-24244-1 & 10-24445-01)
- Caterpillar 3208 engines
- Cummins V504M engines
- Dolphin Marine 2726TIM 6 cyl, 2726TM 6 cyl, Adhara, FSD 2.5, Super Saiph II, Super Saiph 3 & Vega engines (10-24070-1, 10-24139-1 & 10-24139-3)
- Ford 2723, 2725, 2700 Turbo, 2704ET, 2726T, 2726TIM, 2726TM, 2728TIM, BSD333, BSD444 & BSD666 engines (10-24139-1, 10-24139-3 & 10-24244-1)
- Herald Marine 6.150, 6.170, 6.178T & Magnum 300 engines (10-24014-1)
- High Power Marine 2715E engines (10-24139-1)
- Marine Craft 2653-5E HC engines (10-24070-1)
- Mercedes OM352, OM355, OM360, OM401 & OM402 engines (10-24209-1)
- Mercraft 150 & 180 engines (10-24139-1)
- Mercury Marine 4 cyl engines (10-24253-1)
- Mermaid Marine 397, 595, 2722 4 cyl, 2723 4 cyl, 2724 4 cyl, 2725 4 cyl, 2726 6 cyl, 2727 6 cyl, 2728 6 cyl, 595 TP, Flat Four, Flat Six, Majestic, Manta, Mariner, Melody, Mistral, Monarch, Turbo Four & Turbo Plus engines (10-24139-1 & 10-24139-4)
- Nanni 4.220 HE, 4.230, 4.240, 4.380, 5250 TDi, 5.
