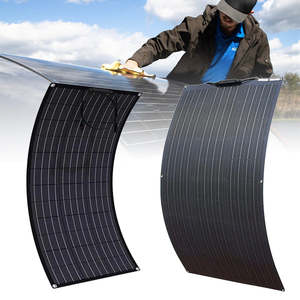

Flexible Solar Panel

Features:

- 9BB Mono Solar Cell: Featuring a 9BB mono solar cell, this product ensures efficient and reliable solar energy conversion.
- Layered Design: The transparent backsheet serves as the first layer, followed by a black backsheet and a strip junction box with a 90cm MC4 connector, providing a well-structured and functional solar solution.
- Long-Term Power Assurance: Benefit from a 25-year power output guarantee, assuring consistent performance and reliability over an extended period.
- Wide Temperature Range: With a temperature range from -40°C to 85°C, this solar cell excels in diverse environmental conditions, ensuring optimal functionality.
- Power Tolerance: Boasting a power tolerance of ±2%, this solar cell delivers precise and reliable power output, enhancing its performance.
- Standard Test Conditions: Tested under standard conditions of 1000W/m2, AM1.5, and 25°C, this solar cell meets industry benchmarks for accurate assessment and comparison.

Specifications:

- Maximum Power(Pmax): 120W, 150W or 200W
- Max Power Voltage 19.60V
- Max Power Current 7.65A
- Open-Circuit Voltage 23.3V
- Short-Circuit Current 8.42A
- Maximum System Voltage 1000VDC
- Temperature Range -40°C to 85°C
- Power Tolerance ± 2%
- Standard Test Conditions 1000W/m2, AM1.5, 25°C
- Solar Cell Mono
- 90cm MC4 Connector

Product Dimensions:

- Solar Panel 120W: 930 x 670 x 3mm
- Solar Panel 150W: 1240 x 670 x 3mm
- Solar Panel 200W: 1500 x 670 x 3mm

Package Includes:

- 1x
