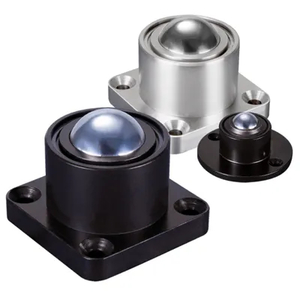

Flange-Mounted Ball Transfer Units for Heavy-Duty Applications

Standard Materials - AISI 52100 high chrome steel balls & internal load bearing components. “Anti-Oxide" electrophoretic coated housing. Material upgrade options: Stainless Steel Balls Stainless Steel Internal Parts All Stainless Steel Parts Phenolic resin main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) BALL ⌀ ″ BALL ⌀ (MM) A B C DxD ExE F G £ from Files 8200 120 50 1/2" 12.7 0.938 23.8 0.875 22.2 3.8 ❋ 3.8 ❋ 1.750 ● 44.5 ● 1.375 34.9 0.125 3.2 2 x 0.141 2 x 3.6 £ 0 PDF Step 8210 120 50 1/2" 12.7 0.938 23.8 0.875 22.2 3.8 ❋ 3.8 ❋ 1.875 x 1.250 47.7 x 32 1.375 34.9 0.078 2 2 x 0.156 ► 2 x 4 ► £14.12 PDF Step 8220 200 90 5/8" 15.8 0.945 24 1.535 29 5 5 1.575 ● 40 ● 1.260 32 0.157 4 4 x 0.177 ► 4 x 4.5 ► £57.14 PDF Step 8230 275 110 3/4" 19.1 1.181 30 1.339 34 6 6 1.969 ● 50 ● 1.575 40 0.197 5 4 x 0.217 ► 4 x 5.5 ► £80.50 PDF Step 8240 400 120 1" ...
