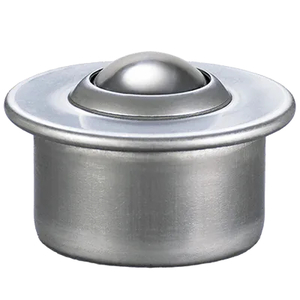

L Series – Push Fit & Clip Fixing Range Ball Transfer Units

Standard Materials - Carbon steel balls, case hardened internal cap & zinc-plated pressings. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) Weight BALL ⌀ ″ Ball Ø (mm) A B B C D E F £ from Files L15 132 60 0.089 0.041 5/8" 15 0.945 24 0.375 9.5 - - 0.181 4.6 1.219 31 0.828 21 0.109 2.8 £ PDF Step L15-C 132 60 0.089 0.041 5/8" 15 0.984 - 1.004 25.0 - 25.5 0.386 9.8 - - 0.181 4.6 1.219 31 0.828 21 0.109 2.8 £3.68 PDF Step L15-K 132 60 0.089 0.041 5/8" 15 0.984 - 1.004 25.0 - 25.5 0.386 9.8 - - 0.181 4.6 1.219 31 0.828 21 0.109 2.8 £3.71 PDF Step L22 353 160 0.282 0.128 7/8" 22 1.417 36 0.386 9.8 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 £5.55 PDF Step L22-C 353 160 0.282 0.128 7/8" 22 1.457 - 1.476 37.0 - 37.5 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 £6.34 PDF Step L22-K 353 160 ...
