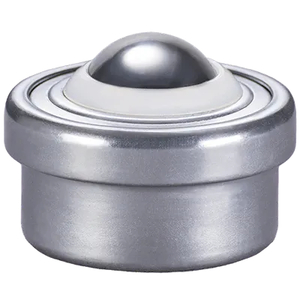

LM Series – Cased Spring Loaded Ball Transfer Units

Standard Materials - Carbon steel balls, case hardened internal cap & zinc-plated pressings. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Supports Load Load at max deflection Deflection Nett weight BALL ⌀ A B C D E £ from Files LM25 45 20 120 55 0.172 4.5 0.384 0.174 1" 25 1.713 43.5 1.938 49.1 1" 25.6 0.406 10.1 0.625 15.7 £ PDF Step Also consider

- L Series
- LD Series
- LF Series
- LP Series
- Pneumatic
- Ball Rails

LM Series load balancing spring loaded unit with integral moulded nylon seal.

Internal coil spring deflects for biased loads or to compensate for surface irregularities. Carbon chrome balls & zinc plated pressings.

Encased spring loaded. Low Friction
1 : 0,03 Speed
1m/sec Temperature
-20/ 80ºC

Orientation Horizontal / Up Economy & Value Similar Heavy Duty models:

- MM22
- 982...
