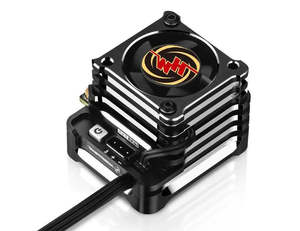

HOBBYWING XeRun XD10 PRO Drift Spec ESC

What comes in the box?

All editions come with

XD10 PRO ESC (2) Input wires & (3) Output wires (PRE-SOLDERED)(2) x cooling fan (comes with one backup fan)DecalsBonus parts: heat tubes, double tape, nylon cable zap trapsP/N - SKU3011261430112615

30112616ColorStealth

Passion

Spirit

Why you want this:

Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)

Download

Xerun XD10 PRO ESC user manual

SpecificationsIDXerun XD10 PRO ESC - DRIFTp/n

30112614 (Stealth) 30112615 (Passion)

30112616 (Spirit)

Application1/10th drift carCont./Peak Current100A/800AInput Voltage2S LiPo/4-6S NiMHBEC Output5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)Wires & ConnectorsStandard: 13AWG 200mm

Programming deviceLCD program box

OTA programmer (Available through Firmware update)FirmwareLCD Program box via USB software (PC only)

OTA (iOS / Android) Size & Weight40.7x35.0x32.0mm (w/Fan)Weight95g (w/ wires)Motor Limit

Brushless Motor Limit with 2S LiPo/6S NiMH:

KV Rating/T Count ≥8.5T
