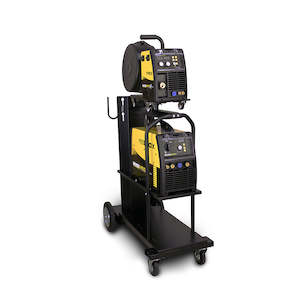

Bossweld MST-350X Inverter Mig/Stick/Tig Welding Machine

Bossweld X-Series MST-350X Inverter Mig/Stick/Tig Welding Machine, 350 Amp
699650

The Bossweld Mobile 350X is a workshop power house; 350 Amps at 60% duty cycle delivers plenty of power to spare. Coupled with the Mobile X wire feeder ensuring smooth and accurate MIG wire delivery. Being a multi-process machine, it provides the additional choice of Stick Electrode and TIG processes.

- 350 Amp output
- MIG /Stick /TIG welder
- Suitable for heavy industrial
- Digital LED display
- 4 Roll wire drive system
- Synergic control
- Gas /gasless operation
- 2T / 4T trigger latching
- Separate wire feeder
- 10mt interconnecting cable
- Suits D200/D300 spools

Includes

- MST 350X Inverter Welder
- Mobile X Wire Feeder
- Machine Trolley
- 10M Interconnection Cables
- 4Mt Ergon BZ36 MIG Torch
- 5Mt Earth clamp
- 2Mt Gas Hose
- Bossweld Twin Gauge Regulator
- Drive Rollers

- 0.9/1.2mm V Groove 30 x 10 x 12mm (fitted)
- 1.2/1.6mm V Groove 30 x 10 x 12mm
- Operator Manual

Specifications

- Primary Input power: 3 Phase 415V 50-60 HZ /-15%
- Duty Cycle @ 40?C: 60% @ 350A
- Open Circuit Voltage

- MIG: 67V
TIG/MMA: 14V
- Output Current Range

- MIG: 40-350Amps
- MMA / TIG: 10-350Amps
- I Max

- MIG: 23A
- TIG: 20A
- MMA: 26A
- I eff

- MIG: 18A
- TIG: 15A
- MMA: 20A
- Protection/Insulation Class: IP21S / S
- Wire Diameter Range: 0.6mm to 2.0mm
- Electrode Diameter Range: 1.6mm to 5.0mm
- Thermal Overload: Yes
- Minimum KVA: 18.0
- Dimensions/Weight: 113x151x52cm / 85kg
