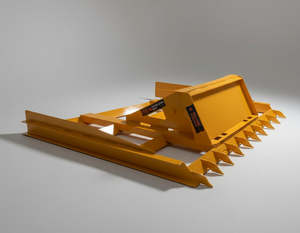

ANGLED LEVELLING BAR - Skid Steer Coupler

ANGLED LEVELLING BARS - WITH SKID STEER/TRACK LOADER COUPLER

Couple your Skid Steer into the Angled Levelling Bar, giving a very firm, tight and exact control for the operator. With the first two cross bar angled this sweeps or moves material from the left to right, perfect for gravel drive maintenance.

All sizes have the option of Ripper Claws made from ARS450 Abrasion Resistant Steel, when crowding back you can use claws to help rough up and break surface.

Choose width and depth to suit you application. FEATURES

- Front two cross bars angled left to right
- Heavy duty 8mm thick coupler plate
- Four right angel cross bars
- Step for entering and exiting machine (not for Mini Skid options)
- Finished in two pack polyurethane OPTIONS

- Eight sizes to choose from
- Three colour options

See chart below for specifications Model Width Depth Weight Connection Type Cross Bar Material SSL160 1.6m 1.4m 110kg Mini Skid / Skid Steer Coupler 75x75x8 Angle SSL180 1.8m 1.4m 127kg Mini Skid / Skid Steer Coupler 75x75x8 Angle SSL200 2m 1.6m 140kg Mini Skid / Skid Steer Coupler 75x75x8 Angle SSL220 2.2m 1.6m 277kg Mini Skid / Skid Steer Coupler 100x100x10 Angle SSL240 2.4m 1.8m 289kg Skid Steer Coupler 100x100x10 Angle SSL260 2.6m 1.8m 296kg Skid Steer Coupler 100x100x10 Angle SSL280 2.8m 1.8m 316kg Skid Steer Coupler 100x100x10 Angle SSL300 3m 1.8m 329kg Skid Steer Coupler 100x100x10 Angle
SHIPPING

- FREE delivery Tasman region
- The rest of calculated at check out
STOCKING LEVELS - 10 Day Promise

If not in stock, we promise to have it ready to ship in 10 Working Days! If you need it urgently, the let us know we can usually shuffle things around to meet your deadline. ORANGE HITCHES LIMITED (Est 2007)

- Kiwi made
- Factory direct
- Optional custom mods & builds
- First in

Orange Hitches NZ, ALWAYS BEHIND YOU
