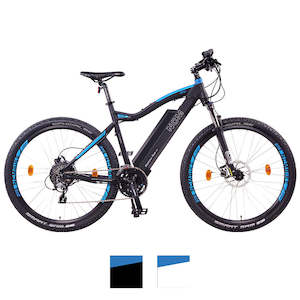

2025 NCM Moscow Plus Electric Mountain Bike,E-Bike, E-MTB, 48V 16Ah 768Wh Battery
Introduction
An e-mountain bike equipped with high-end brake and drive systems, the NCM M5 is for adventurous riders who want to hit the trails comfortably in the knowledge that their ebike can handle whatever they throw at it. Rugged and capable, the NCM Moscow Plus is hugely versatile. Focusing on usability and capability, this E-bike is designed with a tough aluminum frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, while makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road. Key Features
- Ergonomic bicycle Grips
- Comfortable sitting posture
- All important controls easily accessible
- Supplied with 48V to deliver a high output power
- Over 768Wh capacity for a longer distance
- Reach up to 150 km (depending on terrain conditions & power level settings)
- Battery integrated in the frame for better aesthetics
- Easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
- Equipped with Throttle and Pedal assist.
BIKE COMPONENTS
Frame: Alu. 6061, 26" 17.3 inches / Alu. 6061, 27.5" 18.9 inches / Alu. 6061, 29" 20.5 inches
Suspension Fork: Suntour, XCM-HLO-26/27.5/29, with hydraulic lock system
Brake: F/R: Tektro Hydraulic Disc Brakes,HD-E350
Freewheel: LY, 8 Speed, 11-32T, Silver
Tire: Schwalbe, Black Jack, 26" 2.1/Smart Sam, 27.5" 2.35/29" 2.35, Black
Saddle: Selle Royal, Lookin-A200UR, Black
Crank: Das-Kit, CM48,28/38/48T
Derailleur: F: Shimano, Altus, FD-M310, R: Shimano, Acera, RD-M360
ELECTRIC COMPONENTS
Battery: Das-Kit, i5-4816, 48V 16AH, 768WH
Hub Motor Rated / Peak Power: Das-Kit, X15, 48V 250wh
Controller: Das-Kit, CT-i5, 48V 16amp
Charger: Das-Kit, 48V3A
Display: Das-Kit, C7
WEIGHT
Net Weight (with battery): 57.0 lbs
Battery Weight: 9.1 lbs
Max Load (driver bike): 275.0 lbs Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture ) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty. About NCM NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.
