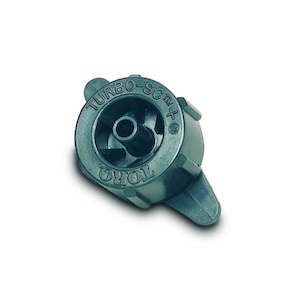

Toro Turbo-Plus II Pressure Compensating Dripper

- Pressure compensating emitter with a chemically inert silicon diaphragm to cater for undulating terrain or long lateral runs with maximum blockage resistance.
- Available flow rates: 2l/h, 4l/h and 8l/h
- Take apart feature permits cleaning and inspection (2-piece)

Features

- Available in 2.0, 4.0 and 8.0l/h flow rates.
- Recommended operating pressure range 100-300kPa.
- Turbulent flow path for blockage resistance and uniform water distribution.
- High quality chemical resistant diaphragm.
- Removable cap and diaphragm for system inspection.
- 4mm barbed inlet to reduce the risk of particle entry on start up.
- Diaphragm seats on base to prevent backflow into the emitter.
- Outlet baffle to deter entry of insects.
- Cap stamped with nominal flow rate for easy identification.
- 4mm tubing can be connected to the outlet for precise drip placement.
- Cap - glass filled polypropylene.
- Diaphragm - silicon
- Base - ABS Specifications

Documentation

Toro Turbo-Plus II Dripper-PC Videos Compatible with

The Toro Turbo-Plus II is compatible with all Lateral P ipe and 4mm ID Tube.
