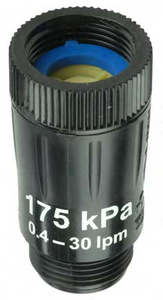

Antelco Pressure Regulators / Reducer 20mm (3/4")

A range of low flow pressure regulators designed to stabilise outlet pressure and optimise emitter performance in micro irrigation systems.

- High-strength, chemical-resistant ABS construction for durability.
- Stainless steel spring for long wear.
- Three outlet pressure options: 70 kPa, 100 kPa or 175 kPa.
- 20mm (3/4" BSPF) inlet x 20mm (3/4") BSPM outlet.
- Pressure regulators have minimal moving parts and a pressure protection mechanism to respond to system back pressure.
- Threads directly to 3/4" (20mm) tap

Operating Pressure: 0 - 690 kPa
Flow Range: 0.4 - 30 lpm

Applications
Drip, spray and sprinkler systems in landscape applications. Ideally connected to taps, valves, tap timers and irrigation valves in a manifold system

Installation

- The Pressure Regulators must always be installed downstream from all shut-off valves, regardless of the application.
- Regulators should be installed with the vent hole unobstructed.
- Do not use sealing compound (solvent cement). If needed, teflon tape may be used to seal for leaks.
