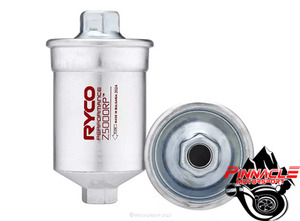

Ryco Performance Race Fuel Filter M14x1.5 / As used by V8 SuperCars

GEN3 SUPERCARS CONTROL PARTS BY RYCO FILTERS
Supercar Application GEN3 Camaro LS3, Mustang Coyote V8

- Micron Rating 7 micron (nominal)
- Efficiency Rating 7 micron @ 98.67%
- Flow Restriction 65 kPa @ 7L/min (1.8 GPM)
- Thread Size M14 x 1.5 (compatible with dash 6 & 8 fuel lines using additional adaptors)
- Fuel compatibility E85, Methanol
- Construction Aluminium housing
- Recommended Service Interval For racing conditions change every 2000 km’s
Features and Benefits

- Rolled element fine-micron media rather than coarse-particle pleated metal screens
- E85 and racing fuel (Methanol) compatible
Tech Specs

- Body diameter 55.00 mm / 63.00mm OD at widest point
- Inlet Size M14x1.5-6H mm
- Outlet Size M14x1.5-6H mm
- Overall height 112.50mm
