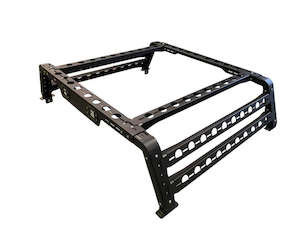

OzRoo Universal Tub Rack - Single Cab and Dual Cab - Half Height & Full Height

HALF HEIGHT, FULL HEIGHT, NARROW?! WHICH DO I NEED:

Half height - Shown on the grey Ranger below.
These are intended to allow items, including roof top tents, to sit in-line with the roof or below.
These sit ~230mm above your tub side wall at their lowest point.

Full height - Shown on the gold Ranger Wildtrak above.
These are intended to maximize tub storage and create a platform at or just below the roof height.
These sit ~400mm above the tub side wall at their lowest point.

Extra high
These are intended to maximize height to create a platform above the roof height.
These sit ~600mm above the tub side wall at their lowest point.

Narrow Rack - These are intended for customers who would like to keep their sports bars. These are a full height rack with a more angular setup.

Extra Cab - These are intended for individuals with an extra or single cab tub. These are typically too long for a dual cab. Made in 4mm steel rather than 3mm steel these are heavy duty intended for the wide span.

Half Cab - These are intended for individuals who want a shorter rack to minimize space used in the tub, whilst also creating storage.

. Technical Specifications:

Full height racks:
Length of the racks: 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 590 mm above tub
Minimum height 400mm
Includes two side bars.

Half height racks:
Length of the rack - 126cm
Width of the rack - 145cm-180cm
50mm distance between adjustment holes.
3 holes of adjustment on the lower arm
3 holes of adjustment on the upper arm.
Maximum height 350mm above tub
Minimum height 200mm
Includes one side bar.

Narrow style rack
Length of the rack - 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Extra long length racks
Length of the rack - 150cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Half cab length racks
Length of the rack - 95cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Extra high racks:
Length of the racks: 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
8 holes of adjustment on the lower arm
8 holes of adjustment on the upper arm.
Maximum height 790mm above tub
Minimum height 600mm
Includes two side bars.

OzRoo, For Australian Conditions - Proudly distributed by PPD Performance
Please note the weight rating is contingent on correct installation at a non-maximum height. The weight rating is slightly degraded at maximum height.
Please note, the factory mountain top cover may need extra support if you intend to run full weight ontop of this. Please contact mountain top for the rating of their cover.

Instructions

Full Height Tub Rack - Install Instructions (PDF)

Half Height Tub Rack - Install Instructions (PDF)
