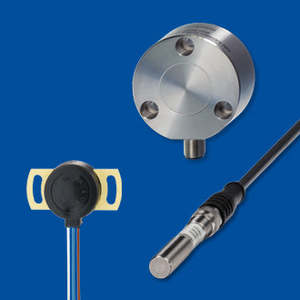

PosiRot- Magnetic Angle Sensors

Magnetic. Flexible. Suitable for outdoor use.

posirot® angle sensors detect angular positions of rotating elements with absolute precision by means of a magnetic measurement principle. They are resistant to shock, vibrations, and contamination, which makes them even suitable for use in harsh outdoor environments. Laser-welded, hermetically sealed, stainless-steel housing units guarantee a long service life even in challenging environmental conditions (PRAS6), in hygiene applications (PRAS7), and in permanently submerged applications (PRAS4). posirot® angle sensors featuring degree of protection IP60 are suitable for demanding indoor aplications.

The Advantages

- Measurement range from 0° to 360°
- Contactless or with a 10 mm shaft
- Shock, vibration and dirt resistance
- Laser-welded, hermetically sealed housing
- Degree of protection up to IP68/IP69

posirot® angle sensors rely on multihall technology to take contactless and wear-free rotation measurements. This involves a magnetic measuring element being secured to the rotating component so that the change in magnetic field during rotation can be measured by a multihall sensor. The sensor and magnet can either be integrated into a single housing or installed separately. The magnetic measurement method makes the sensor resistant to mechanical loads and contamination.

to download General Posirot Brochure

Please with your specific requirements (sales@prosol.co.nz)
