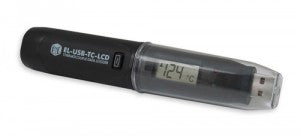

EL-USB-TC-LCD

This standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box measures from 0 to 200°C (32 to 392°F) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery, K-type probe and wall mount clip.
Specification Measurement Range K type (provided) 0 to 200°C (32 to 392°F) Measurement Range K type -200 to 1,350°C / -328 to 2,462°F Measurement Range J type -200 to 1,190°C / -328 to 2,174°F Measurement Range T Type -200 to 390°C / -328 to 734°F Accuracy ±1°C / ±2°F (data logger only - thermocouple error not included) Readings 32,510 Logging Rate User selectable between 1 second and 12 hours Battery Life 2 Years Click to download Datasheet
