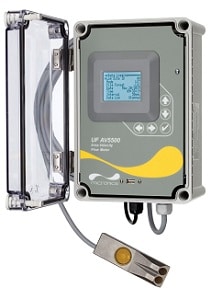

Micronics - UF AV5500 - Dedicated Area-Velocity Flow Meter

Irregular, open channel flow measurement solution with data logger and no need for flumes or weirs

- For part filled pipe and open channel monitoring
- New 26 million point data logger now as standard
- Streamlined sensor for invasive measurement
- Easy to use
- Irregular channel
- Monitor flows through partially full pipes or open channels
- Eliminates the need for flumes or weirs
- Automatic temperature compensation
- Irregular channel shapes

TECHNICAL SPECIFICATIONS

Enclosure:– Watertight and dustproof (IP66).
Power Input:– 100-240VAC, 50/60HZ., 10VA maximum, 9-32VDC.
Outputs:– 3x Isolated 4-20mA into 1000 ohm load. Programmable for Flow, Level or Velocity. Modbus RTU via RS-485 Option.
Relays:– 2 x form ‘C’ dry contacts rated 5 amp SPDT Programmable for Flow Proportional pulse (sampler/totalizer) flow and/or level alarm.
Velocity Range:– 0.03 to 6.2m/sec.
Level Range:– Minimum Head 25.4mm to maximum head 4.5m.
Accuracy Level: /- 0.25% of Range,
Velocity:- /-2% of Reading,
Linearity and Repeatability:– 0.1%.

Expected Delivery : 4 - 6 weeks from order confirmation.

Standard manufacturers warranty - 3 years
