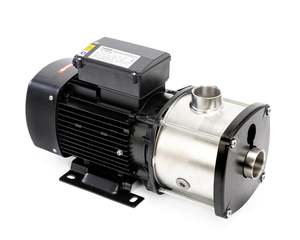

CMB 10-50-Stainless Steel Multistage Water Pump for Large Home / Farm
The CMB10-50 is ideal for domestic water supply, providing mains pressure for a large single or multi-level home (plus). Able to support up to 22 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow). Starts automatically when the tap is turned on and stops automatically when the last tap is turned off when fitted with a pump controller, operating constantly from low flow to full flow.
Specifications:
Power: 2200W - 3.0 Horsepower
Amps: 14
Single phase fitted with 15 amp plug
Max Flow Rate: 260 LPM
Max Pressure: 72 psi
Max Operating Pressure: 8 Bar
Max Suction: 1.5m
Inlet/Outlet: 1.5 inch BSP (40mm)
Liquid Temperature Range: -20 - 70C
Dimensions: 449mm Length x 217mm Height x 199mm Width
Features:
IP55 Protection
Insulation Class F
Corrosion resistant stainless steel construction
Stainless Steel Pump Housing
Stainless Steel Motor Shaft
Stainless Steel Impeller and Intermediate Chambers
Built in Thermal Overload Protection
Very quiet operation
Rated for Continuous Duty Applications:
Domestic water supply for large / very large homes
General water transfer systems
Industrial/commercial applications
2 Year back to base warranty
