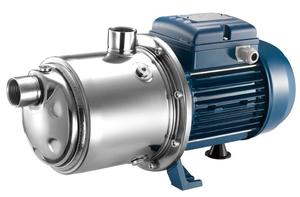

Pentax Ultra 5S U5-200/7 Stainless Steel Multistage Pump

ULTRA 5S-200/7

The Pentax Ultra S range are stainless steel multistage pumps well suited to house and farm water supply. They have a robust fully stainless steel wet end and are very quiet in operation. The Ultra S Series are available in a wide range of models to match your application. They can also cover a wide range of applications such as pumping of clean non-loaded fluids, irrigation, drinking and glycol water, water treatment, heating and air conditioning and washing systems.
Specifications:

230v
Single Phase
1.5 kW/2.0 HP
Max Head: 80m
Max Flow Rate: 140LPM
Max PSI: 113
Inlet/Outlet: 25mm
Suction Lift: 1.5m
Non Self Priming
Amps: 9.0 Features:

Offset suction for improved suction ability (3S & 5S models)
Liquid temperature: -5 ÷ 35 °C
Maximum operating pressure: 8.5 bar (125 PSI)
Enclosure class: IP44
Insulation class: F
Duty rating: Continuous
Totally enclosed, fan cooled standard squirrel frame type motor
Single phase versions fitted with auto reset internal overload
Three phase version require user supplied overload to be fitted in installation
304 Stainless steel impellers, Diffusers, Seal plate & Pump casing
303 Stainless steel pump shaft
Mechanical Seal: ceramic-graphite (6 impellers or less)
Mechanical Seal: graphite-silicon carbide (7 impellers or more)
Aluminium motor bracket Applications:

House and farm water supply
Clean Water/Rain Water/Tank Water
Pressure boosting
Water treatment
Industrial circulation
Hot water cleaning systems
2 Year Back to Base Warranty
