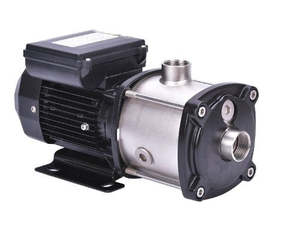

TREVOLI - CMB5-67T (Three Phase) - Stainless Steel Multistage Water Pump
CMB5-67T
The Trevoli CMB5-67T is a three phase, stainless steel multistage pump ideal for applications that use multiple taps & require high head pressure. Suitable for applications where only 3 Phase power is fitted. These pumps are ideal for high head water transfer, irrigation, light industrial and commercial applications.
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Specifications:
Power -1500W - 2 Horsepower
1.5 Metre suction
Max Flow rate: 100 litres per minute
2900 rpm
Max Pressure 95 psi
Max discharge head: 67 metres
Inlet size: 1¼inch BSP (same as 32mm)
Outlet size: 1 inch BSP (same as 25mm)
Three phase
Built in thermal overload protection
Insulation class F
IP55 Protection
Rated for Continuous duty
Liquid temperature range: 0-70 deg C
Max operating pressure: 10 bar
Number of Impellers: 6
Length: 446mm
Height: 209mm
Width: 178mm Common Applications:
Farm irrigation
General water transfer systems
Light industrial/commercial applications
Applications with 3 phase power only Features:
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Stainless steel impeller and intermediate chambers
Built in thermal overload protection
Very quiet operation
Performance:
This is a high pressure Pump - up to 95PSI, supports up to 9 taps operating at one time. (Based on 10 L/m).
2 Year back to base warranty
