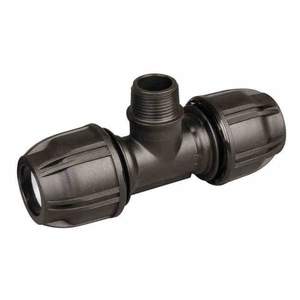

Hansen Threaded Male Tee Connector

Hansen Threaded Tee Connector (20mm-110mm)

Easy Fit Compression Fittings
Used for connecting medium density polyethylene pipe (MDPE) to male threads. Metric Size x BSPT thread size. Fitting Code
Metric 16mmX15mm MD Tee HMDMT1615 16mmx15mm x 1/2" 16mmX20mm MD Tee HMDMT1620 16mmx20mm x 1/2" 20mmX15mm MD Tee HMDMT2015 20mm x 20mm x 1/2" 20mmX20mm MD Tee HMDMT2020 20mm x 20mm x 3/4" 25mmX15mm MD Tee HMDMT2515 25mm x 25mm x 1/2" 25mmX20mm MD Tee HMDMT2520 25mm x 25mm x 3/4" 25mmX25mm MD Tee HMDMT2525 25mm x 25mm x 1" 32mmX20mm MD Tee HMDMT3220 32mm x 32mm x 3/4" 32mmX25mm MD Tee HMDMT3225 32mm x 32mm x 1" 32mmX32mm MD Tee HMDMT3232 32mm x 32mm x 1 1/4" 40mmX32mm MD Tee HMDMT4032 40mm x 40mm x 1 1/4" 40mmX40mm MD Tee HMDMT4040 40mm x 40mm x 1 1/2" 50mmX40mm MD Tee HMDMT5040 50mm x 50mm x 1 1/2" 50mmX50mm MD Tee HMDMT5050 50mm x 50mm x 2" 63mmX40mm MD Tee HMDMT6340 63mm x 63mm x 1 1/2" 63mmX50mm MD Tee HMDMT6350 63mm x 63mm x 2" 75mmX63mm MD Tee HMDMT7563 75mm x 75mm x 2 1/2" 75mmX75mm MD Tee HMDMT7575 75mm x 75mm x 3" 90mmX75mm MD Tee HMDMT9075 90mm x 90mm x 3" 110mmX110mm MD Tee HMDMT110100 110mm x 110mm x 4"

Features

Manufactured in using the best materials to withstand the harshest conditions
Proven O-Ring seal for reliable leak free connections
Potable (Drinking) water compatible
Easy Grip Nuts for rapid winding onto pipe
Sleek, Compact Design for easy installation
Dependable High Quality Threaded components Medium Density Fittings

Used for:
Medium Density Pipe
Blueline pipe (available in our hose section)

Tips:
Medium-density pipe is referred to by its outside diameter (OD)
Medium Density Fittings go overtop of MD Pipe
The pipe needs to be pushed past the O-ring in the MD fitting to seal
Use tools to tighten
If the MD pipe is scratched or gouged, it may not create a seal on the O-ring and leak.

Hansen Easy Fit Compression Fittings Brochure
