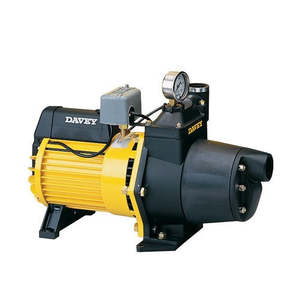

DAVEY - 165S3 Shallow Well Pressure Pump
Suitable for suction depths down to 7m. This shallow well jet pump with pressure switch is a rugged pump suitable for supplying water for garden sprinklers, stock watering and washdown. Other popular applications include supplying water from dams, creeks, rivers tank filling. SPECIFICATIONS:
Max Flow Rate: 165 LPM
Max Delivery Height: 40m
Max Suction: 7m
Max/Min Water Temp: 50°C/1°C
Inlet Size: 1 1/2"/ 38mm
Outlet Size: 1 1/4"/ 32mm
Three Phase FEATURES:
Davey LTEFC motor providing:
IP56 rating for long term protection against vermin, dust and water • Designed for both high ambient temperatures and extremes in supply voltage making them ideal for remote areas
Pump unit features the highest corrosion resistance with outstanding pressure capacity due to: Unique composite casing design with high strength aluminium outer casing and full internal casing made from precision moulded Rilsan.
Mounting feet in high impact resistant corrosion proof Xenoy.
Versatile pump - convertible to match required duty
Colour coded jets and venturis for easy identification
Easily converted to automatic operation
165S available with 3 phase motor
Quick and easy installation
Low maintenance
Easy to service if required
Oring seal hand tightened priming plug for easy operation APPLICATIONS:
• Farm water supply from dams, creeks and rivers
• Tank filling
• Stock watering
• Sprinkler supply
2 Year Warranty
Spec Sheet
