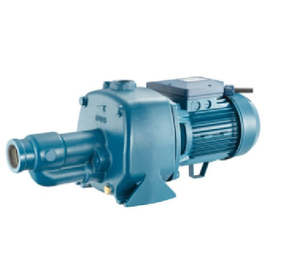

Pentax CAB300 Series Single Phase- Cast Iron Self-Priming Centrifugal Pumps

The Pentax CAB Series are self-priming centrifugal pumps designed for water transfer and supply (even if mixed with gas). They are ideal household and civil systems, when connected to autoclave tanks, they become automatically pressurised. The CAB series are a twin impeller design & are an efficient pump capable of lifting water 8-9 meters from below. Specifications:

Power: 2.2kW/3HP
Head: 62m
Flow Rate: 140 LPM
230v/Single Phase
Amps: 13a
Inlet 40mm
Outlet 25mm
Insulation: Class F
Protection: IP44
Rating: Continuous
15 AMP Plug Features:

Suction Lift - 8 Metres
Heavy Duty Build
Cast Iron Body & Motor Bracket
Ceramic Mechanical Seal
Stainless Steel Shaft
Built in thermal overload protection Operation limitations:

Liquid temperature range: 0ºc to 50ºc
Maximum operating pressure: 8bar/116PSI Applications:

Irrigation
Water transfer
Wells, Ponds, Lakes, Rivers
Household small-large
Civil Systems

2 Year Warranty
