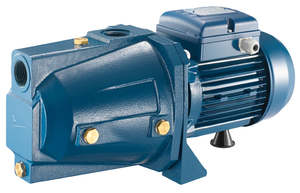

Pentax CAMT300 Series - Cast Iron Jet Pump

CAMT300/01

The Pentax CAMT300/01 is self-priming centrifugal jet pump, ideal for house or farm water supply and transfer. The Jet/Venturi design provides the pump with the ability to lift water 8 meters below from the water source. Other applications include drawing water from rivers, ponds, wells, bores and underground tanks. The Cam series are a heavy duty and robust pump.
Explanation of Controller Options

Explanation of Controller Options variable speed Specifications:

Power: 2.3kW/3.0 HP
Head Height: 65m
Flow Rate: 120 LPM
Amps: 4.8
Inlet 40mm/Outlet 32mm
Three phase voltage range: 220-240v Delta/380-415v star
Insulation: Class F
Protection: IP44
Rating: Continuous
Features:

Suction Lift - 8 Metres
Heavy Duty Build
Cast Iron Body & Motor Bracket
Ceramic Mechanical Seal
Stainless Steel Shaft
Built in thermal overload protection Operation limitations:

Liquid temperature range: 0ºc to 50ºc
Maximum operating pressure: 8bar/116PSI Applications:

Suitable for Large Household
Farm supply
Water transfer
Drawing water from rivers, ponds, wells, bores and underground tanks

2 Year Warranty
