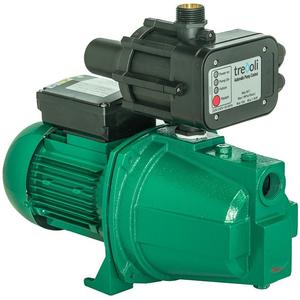

TREVOLI - JET100E - Cast Iron Jet Pump - 1 HP
This pump is ideal for and farm irrigation, providing mains pressure for a medium to large single or multi-level home supporting up to 5 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow.
For farm or stock applications this pumps works best with a mechanical pressure switch and a pressure tank.
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Explanations of Controller Options Specifications:
Power -750W - 1 Horsepower
Single phase with standard 3 pin plug
Max Flow rate: 70 Liters per minute
Max Pressure: 66 psi
Max suction lift: 8 metres
Max discharge head: 47 metres
Inlet/Outlet sizes: 1 inch BSP (same as 25mm)
Built in thermal overload protection
Insulation class B IP55 Protection
Rated for Continuous duty
Liquid temperature range: 5 - 60 deg C
Max operating pressure: 6 bar Applications:
Water supply for large homes
General water transfer systems and Irrigation
Domestic Household Pumps
Features:
Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
Self Priming
Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
Operates constantly from low flow to full flow
Stops automatically when the last tap is turned off
Run Dry Protection
Stainless steel impeller
Stainless steel motor shaft
Strong cast iron body
Built in thermal overload protection
Supports 5 taps running at once (Based on 10 Litres per minute)
2 Year Warranty
Jet Series Brochure
