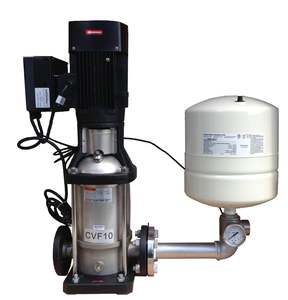

TREVOLI - CVF10-6 - Stainless Steel Vertical Multistage Water Pump for Large Home / Farm with Variable Speed Controller
CVF10-6VP, CVF10-6VTP
This pump is ideal for domestic or farm water supply, providing mains pressure for a large single or multi-level home and farms. Able to support up to 20 taps running at one time. Fitted with a variable speed constant pressure controller and 18L pressure tank.
Specifications:
Available in single and three phase (see drop-down menu)
Power -2200W - 3 Horsepower
Single phase with standard 3 pin plug
Max Flow rate: At 233 litres per minute (at 28m)
Max Pressure: 90 psi
Max discharge head: 63 metres
Max suction 1.5m
Inlet size: 1.5 inch BSP (40mm)
Outlet size: 1.5 inch BSP (40mm)
Built in thermal overload protection
Insulation class F
IP55 Protection
Rated for Continuous duty
Liquid temperature range: -20 - 104 deg C
Max operating pressure: 16 bar
Length: 790mm (including outlet pipework with pressure tank attached)
Height: 770mm
Weight: 50 Kg (pump only) Common Applications:
Domestic water supply for large / very large homes
Farm irrigation
General water transfer systems
Industrial/commercial applications Features:
Fitted with a variable speed constant pressure controller
Delivery pressure can be easily adjusted at any time
Controller provides soft starts to avoid water hammer and related problems
Pump motor operates at varying speed based on actual demand saving up to 50% electricity usage
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Stainless steel impeller and intermediate chambers
Build in thermal overload protection
Quiet operation
2 Year back to base warranty
CVF Series Brochure
