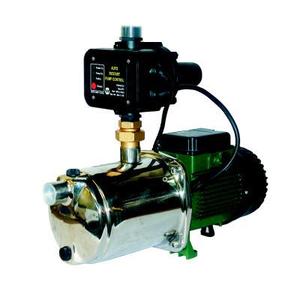

DAB EUROINOX-Domestic/Commercial Pressure Pump Series
230v
Single Phase
Max Suction lift: 9 metres
Explanations of Controller Options Applications:
Pressure boosting
Irrigation
Wash down applications
Designed for pumping from tanks, rivers and dams Technical Features:
Self Priming
Protection level of motor: IP 44
Protection level of terminal board: IP 55
Insulation class: F
Operating range: from 10 to 120 l/min. with a head of up to 72 m.
Pumped liquid characteristics: Clean, free from solid or abrasive substances, not viscous, aggressive or crystallised, chemically neutral and close to the characteristics of water.
Liquid temperature range : from 0°C to 35°C C for domestic use (EN 60335-2-41) from 0°C to 40°C for other uses.
Maximum ambient temperature : 40°C
Maximum operating pressure : 8 bar (800 kPa) Material Design:
Pump body in Stainless Steel.
Motor support in die-cast aluminium, seal holder in AISI 304 steel.
Mechanical seal in carbon/ceramic.
Rotor shaft in AISI 304 steel.
Rotors, diffuser bodies and diffusers in technopolymer. Adjustment rings in stainless steel.
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
2 Year Warranty
