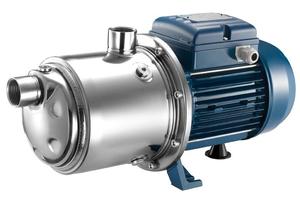

Pentax Ultra U5SA-150/5- Stainless Steel Multistage Pump **Second Hand**
ULTRA 5SA-150/5 w/ Presscontrol
The Pentax Ultra S range are stainless steel multistage pumps well suited to house and farm water supply. They have a robust fully stainless steel wet end and are very quiet in operation. The Ultra S Series are available in a wide range of models to match your application. They can also cover a wide range of applications such as pumping of clean non-loaded fluids, irrigation, drinking and glycol water, water treatment, heating and air conditioning and washing systems. Specifications:
- 230v
- Single Phase
- 1.1 kW/1.5 HP
- Max Head: 56m
- Max Flow Rate: 140LPM
- Max PSI: 79
- Inlet/Outlet: 25mm
- Amps: 6.8 Features:
Liquid temperature: -5 ÷ 35 °C
Maximum operating pressure: 8.5 bar (125 PSI)
Enclosure class: IP44
Insulation class: F
Duty rating: Continuous
Totally enclosed, fan cooled standard squirrel frame type motor
Single phase versions fitted with auto reset internal overload
304 Stainless steel impellers, Diffusers, Seal plate & Pump casing
303 Stainless steel pump shaft
Mechanical Seal: ceramic-graphite (6 impellers or less)
Mechanical Seal: graphite-silicon carbide (7 impellers or more)
Aluminium motor bracket Applications:
House and farm water supply
Clean Water/Rain Water/Tank Water
Pressure boosting
Water treatment
Industrial circulation
Hot water cleaning systems
2 Year Back to Base Warranty
