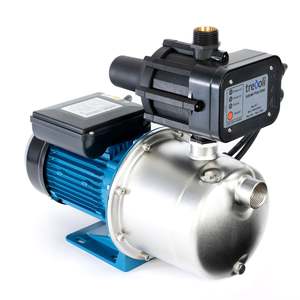

TREVOLI - BJZ150E - Stainless Steel Jet Pump for Large Home
This pump is ideal for domestic water supply, providing mains pressure for a medium to large single or multi-level home supporting up to 6 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, operating constantly from low flow to full flow
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Explanations of Controller Options
Specifications:
Power -1000W - 1.3 Horsepower
Single phase with standard 3 pin plug
Max Flow rate: 80 Liters per minute
Max Pressure: 72 psi
Max suction lift: 8 metres
Max discharge head: 50 metres
Weight: 12 Kg
Inlet/Outlet sizes: 1 inch BSP (same as 25mm)
Built in thermal overload protection
Insulation class B
IP55 Protection
Rated for Continuous duty
Liquid temperature range: 5 - 60 deg C
Max operating pressure: 6 bar
Length: 420mm
Height: 380mm
Width: 200mm
Common Applications:
Domestic Household Pumps
Water supply for large homes
General water transfer systems
Features:
Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
Self Priming
Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
Operates constantly from low flow to full flow
Stops automatically when the last tap is turned off
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Stainless steel impeller
Built in thermal overload protection
Supports 6 taps running at once (Based on 10 Litres per minute)
2 Year Warranty
BJZ Series Brochure
Parts List
