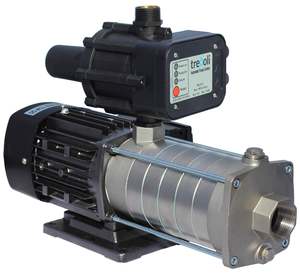

TREVOLI - CM4-50E - Stainless Steel Multistage Water Pump for Large Home / Farm
This pump is ideal for domestic water supply, providing mains pressure for a large single or multi-level home (plus). Able to support up to 12 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow). Starts automatically when the tap is turned on and stops automatically when the last tap is turned off, operating constantly from low flow to full flow
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Explanations of Controller Options
Specifications:
Power -1000W - 1.4 Horsepower
Single phase with standard 3 pin plug
Max Flow rate: 120 litres per minute
Max Pressure:70 psi
Max discharge head: 48 metres
Inlet size 1.25 inch BSP (32mm) Outlet size: 1 inch BSP (25mm)
Built in thermal overload protection
Insulation class F
IP55 Protection
Rated for Continuous duty
Liquid temperature range: -20 - 70 deg C
Max operating pressure: 10 bar
Dimensions: Length 416mm x Height 220mm x Width 143mm
Max suction 1.5m
Common Applications:
Water supply for large / very large homes
General water transfer systems
Industrial/commercial applications
Domestic Household Pumps
Features:
Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
Operates constantly from low flow to full flow
Stops automatically when the last tap is turned off
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Stainless steel impellor and intermediate chambers
Build in thermal overload protection
Very quiet operation
Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
Performance:
This is a High pressure Pump - up to 70 PSI, supports up to 12 taps operating at one time. (Based on 10 L/m).
At 40m Head flow rate = 60 litres per minute
2 Year back to base warranty
