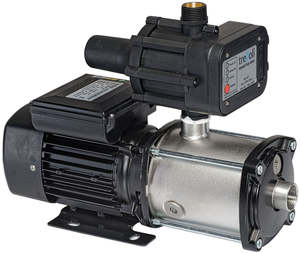

TREVOLI - CMB5-67 - Stainless Steel Multistage Water Pump for Single / Double Storey Home
CMB5-67E (Single Phase)
This pump is ideal for domestic water supply, providing adequate pressure for a small to medium single or double level home supporting up to 9 taps running at one time. Single phase option fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow.
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Explanations of Controller Options Specifications:
Power -1500W - 2 Horsepower
1.5 Metre suction
Max Flow rate: 100 litres per minute
2900 rpm
Max Pressure 95 psi
Max discharge head: 67 metres
Inlet size: 1¼inch BSP (same as 32mm)
Outlet size: 1 inch BSP (same as 25mm)
Single phase with standard 3 pin plug
Built in thermal overload protection
Insulation class F
IP55 Protection
Rated for Continuous duty
Liquid temperature range: 0-70 deg C
Max operating pressure: 10 bar
Number of Impellers: 6
Length: 446mm
Height: 209mm
Width: 178mm Common Applications:
Water supply for Large sized homes
General water transfer systems
Industrial/commercial applications
Domestic Household Pumps
Features:
Single phase option fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
Operates constantly from low flow to full flow
Stops automatically when the last tap is turned off
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Stainless steel impeller and intermediate chambers
Built in thermal overload protection
Very quiet operation
Performance:
This is a high pressure Pump - up to 95PSI, supports up to 9 taps operating at one time. (Based on 10 L/m).
2 Year back to base warranty
