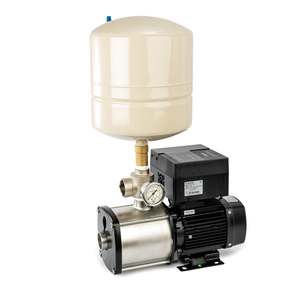

TREVOLI - CMB8-72 - Stainless Steel Multistage Water Pump for Large Home / Farm with Variable Speed Controller **Second Hand**
This pump is a second hand product.
CMB8-72VP
This pump is ideal for domestic or farm water supply, providing mains pressure for a large single or multi-level homes and farms. Able to support up to 15 taps running at one time. Fitted with a variable speed constant pressure controller and 18L pressure tank.
Specifications:
Power -2200W - 3 Horsepower
Single phase with standard 3 pin plug
Max Flow rate: 166 litres per minute
Max Pressure: 102 psi
Max discharge head: 72 metres
Max suction 1.5m
Inlet size: 1½ inch BSP (40mm)
Outlet size: 1½ inch BSP (40mm)
Built in thermal overload protection
Insulation class F
Rated for Continuous duty
Liquid temperature range: -20 - 70 deg C
Max operating pressure: 10 bar
Length: 450mm
Height (including pressure tank): 760mm
Common Applications:
Water supply for large / very large homes
Farm irrigation
General water transfer systems
Industrial/commercial applications
Domestic Household Pumps
Features:
Fitted with a variable speed constant pressure controller (IP54 rated)
Delivery pressure can be easily adjusted at any time
Controller provides soft starts to avoid water hammer and related problems
Pump motor operates at varying speed based on actual demand saving up to 50% electricity usage
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing, motor shaft, impellor and intermediate chambers
Build in thermal overload protection
Quiet operation
Two Year Back to Base Warranty
Manual for W713B VSD Controller
Manual for B603 VSD Controller
Parts List
- Store:
- Pumpsonline
- Price:
- $1,710
