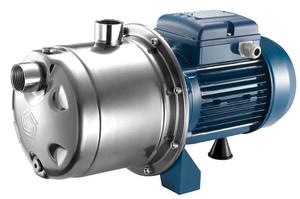

Pentax MPX 100 - Self-Priming Stainless Steel Multistage Pump

MPX100/4

The Pentax MPX model is a horizontal and self-priming, multi-stage centrifugal pump, ideal for medium & large households, water transfer and garden use. They are ideal for domestic water supply where suction lift is required.

For efficiency and long life, we recommend a pressure tank and controller unit to work in conjunction with this pump, please see dropdown menu for a range of options. We can offer multi controller and pressure tank sizes to suit your requirement.

Explanations of Controller Options Specifications:

230v
Single phase
0.75 kW/1 HP
Max Head: 43m
Max Flow Rate: 80LPM
Max PSI: 61
Inlet/Outlet: 25mm
Suction Lift: 4m
Self Priming
Amps: 5 Features:

304 Stainless steel pump body & shaft
Quiet & Low running cost
Ceramic Mechanical Seal
Built in thermal overload protection
Aluminium motor bracket
Rated speed: 2850 RPM - 50Hz
Insulation: Class F
Protection: IP44
Maximum ambient temperature: 40ºc
Liquid temperature range: 0ºc to 50ºc
Maximum operating pressure: 8bar/116PSI Applications:

Domestic water supply for medium to large home
General water transfer systems
Garden use

2 Year Back to Base Warranty
