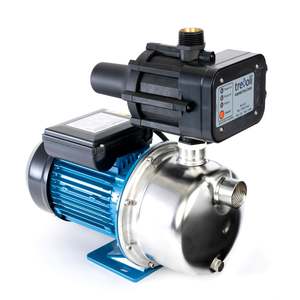

TREVOLI - BJZ100 - Stainless Steel Jet Pump for Medium/Large Home - 1 HP
This pump is ideal for domestic water supply, providing good pressure for a medium size single or double level home supporting up to 5 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Specifications:
Power -750W - 1 Horsepower
Single phase with standard 3 pin plug
Max Flow rate: 70 Liters per minute
Max Pressure: 62 psi
Max suction lift: 8 metres
Max discharge head: 43 metres
Weight: 10 Kg
Inlet/Outlet sizes: 1 inch BSP (same as 25mm)
Built in themal overload protection
Insulation class B
IP55 Protection
Rated for Continuous duty
Liquid temperature range: 5 - 60 deg C
Max operating pressure: 6 bar
Length: 370mm
Height: 360mm
Width: 200mm Common Applications:
Water supply for medium and large sized homes
General water transfer systems
Domestic Household Pumps Features:
Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
Self Priming
Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
Operates constantly from low flow to full flow
Stops automatically when the last tap is turned off
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Built in thermal overload protection
Supports 5 taps running at once (Based on 10 Litres per minute)
2 Year Warranty
BJZ Series Brochure
Parts List
