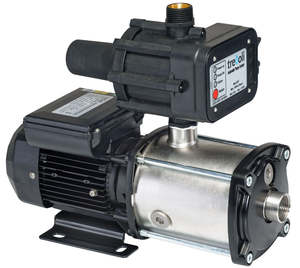

TREVOLI - CMB-SP3-47 - Stainless Steel Multistage Water Pump for Single / Double Storey Home
This pump is ideal for domestic water supply, providing adequate pressure for a small to medium single or double level home supporting up to 6 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow.
Specifications:
Power -550W -.7 Horsepower
4 Metre suction
Single phase with standard 3 pin plug
Max Flow rate: 70 litres per minute
2900 rpm
Max Pressure: 66 psi
Max discharge head: 47 metres
Inlet size: 1 inch BSP (same as 25mm)
Outlet size: 1 inch BSP (same as 25mm)
Built in thermal overload protection
Insulation class F
IP55 Protection
Rated for Continuous duty
Liquid temperature range: 0-70 deg C
Max operating pressure: 10 bar
Number of Impellers: 4
Length: 412mm
Height: 181mm
Width: 166mm Common Applications:
Water supply for small/medium sized homes
General water transfer systems
Industrial/commercial applications
Domestic Household Pumps
Features:
Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
Operates constantly from low flow to full flow
Stops automatically when the last tap is turned off
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Stainless steel impeller and intermediate chambers
Built in thermal overload protection
Very quiet operation
Performance:
This is a Medium pressure Pump - up to 66 PSI, supports up to 6 taps operating at one time. (Based on 10 L/m).
At 28m Head flow rate = 53 litres per minute
Two Year Back to Base Warranty
