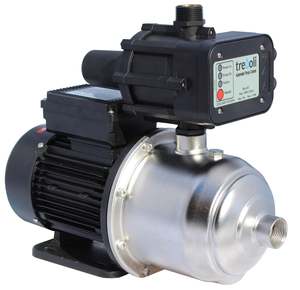

TREVOLI - CMS43E - Stainless Steel Multistage Pump for Med-Home
This pump is ideal for domestic water supply, providing adequate pressure for a medium single or double level home supporting up to 7 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow.
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Specifications:
Power -750W - 1.0 Horsepower
Single phase with standard 3 pin plug
Max Flow rate: 110 Liters per minute
Max Pressure: 52 psi
Self Priming: Suction lift 4 metres
Max discharge head: 36 metres
Inlet/Outlet sizes: 1 inch BSP (25mm)
Built in thermal overload protection
Insulation class B
IP55 Protection
Rated for Continuous duty
Liquid temperature range: 5 - 60 deg C
Max operating pressure: 6 bar
Length: 402mm
Height: 217mm (Excluding controller)
Width: 191mm Common Applications:
Water supply for Medium - Homes
General water transfer systems
Domestic Household Pumps
Features:
Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
Operates constantly from low flow to full flow
Stops automatically when the last tap is turned off
Run Dry Protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Built in thermal overload protection
Supports 7 taps running at once (Based on 10 Litres per minute at 3bar)
Note: A coarse inlet strainer/filter and non-return valve are required to install this pump.
2 Year Back to Base Warranty
